Frontline video evidence · 4G live streaming · Dock auto-offload & charging · Works-contract spec ready

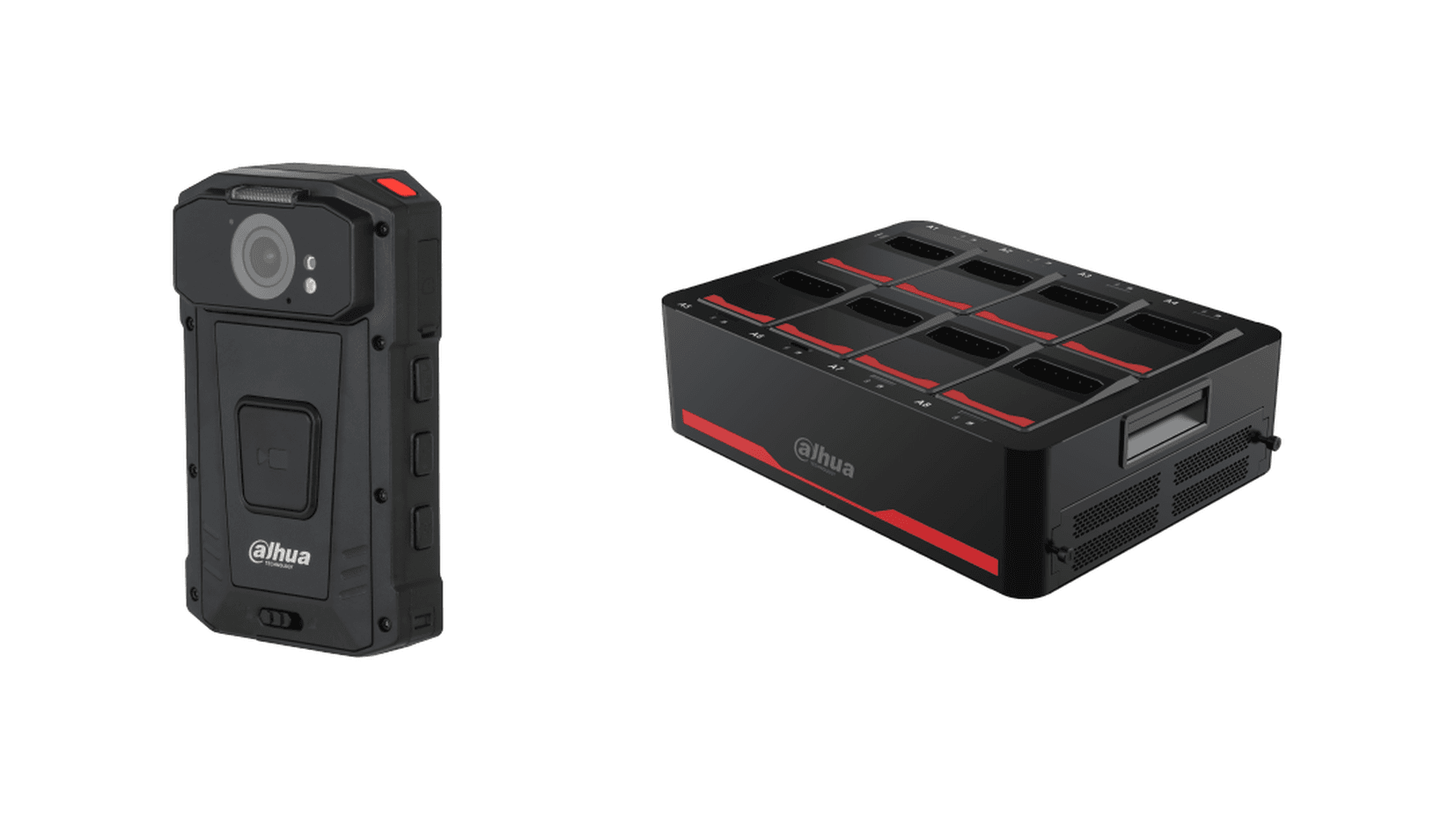

Dahua MPT230 4G body cameras paired with the EEC400-D data collection station give site frontline and resident site staff one-press recording with GPS watermarking, night vision and stabilisation, plus automatic encrypted archiving kept on site; an optional DSS platform adds 4G live view, positioning and group talk — matching government works-contract BWVC specifications and confined-space recording requirements.
Download datasheet (PDF)

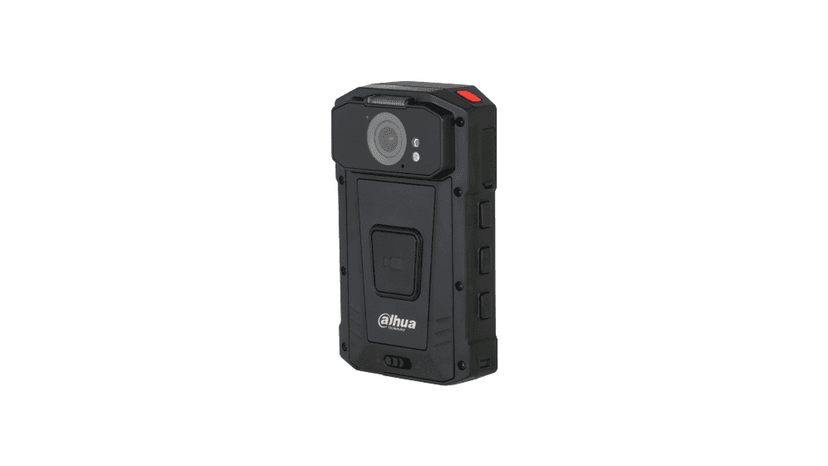

- The MPT230 records at the press of one button, with a 146° ultra-wide lens, electronic image stabilisation (EIS) and up to 2K resolution, while the OSD automatically watermarks time, user, device and GPS coordinates onto the footage.
- 120-second pre-record and 600-second post-record ensure critical moments are never missed.
- With 0.0001 lux ultra-low-light capability, 10 m infrared and an LED light, it keeps filming in tunnels, basements and night works.
- The body weighs just 183 g, is IP68 rated, passed four 2-metre drop tests, operates from −20°C to +55°C, and mounts hands-free with Klick-Fast chest or shoulder fittings — built for site conditions.

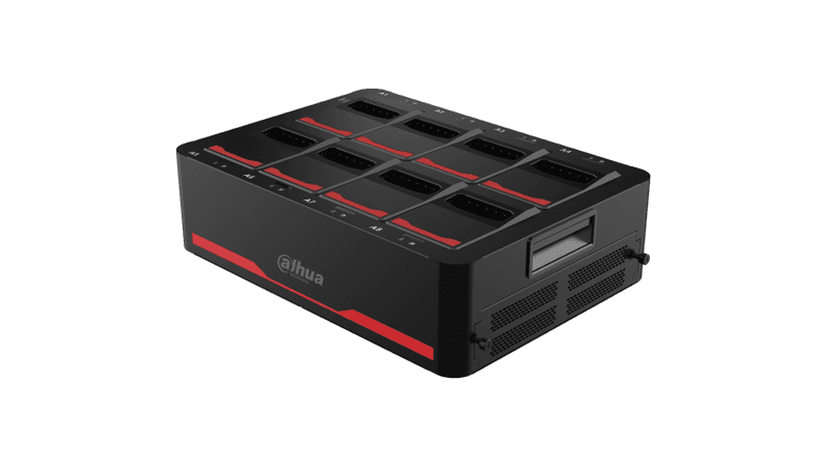

- At the end of a shift, dropping the camera into the EEC400-D station automatically offloads, archives and charges it and updates firmware — 8 cameras simultaneously at up to 64 MB/s.
- Four SATA bays (up to 16 TB per disk) support RAID redundancy, footage is AES-256 encrypted with station account controls, and recordings are retained on site for 7 days or longer as the contract requires, searchable by time, user and type via the HDMI screen or web interface.
- No cloud, no monthly platform fees, and the data stays on site; bilingual "Video & Audio Recording In Progress" labels, a designated data officer and access workflows align with the Personal Data (Privacy) Ordinance and the Privacy Commissioner's guidance on notices, retention, encryption and access.
- Where central monitoring is needed, an optional DSS management platform (Tier 2) connects cameras directly over 4G or Wi-Fi: the control centre watches frontline video live, tracks GPS locations and plays back trajectories, with PTT group talk and one-press SOS with automatic location — ideal for ground-level supervision of confined-space and high-risk works and for multi-site management (one 4G data SIM per camera, client-provided, no fixed IP needed).
- The solution addresses common government works-contract BWVC clauses — weight ≤400 g (183 g here), ≥9 hours continuous recording (11.5 hours at 1080p), storage expandable to 256 GB, ≥7-day retention, encryption and access control, operator training and maintenance response within 2 working days — with a clause-by-clause compliance statement available per contract, and can be deployed alongside the Smart Site Safety System (SSSS).
- From supply and installation to training and maintenance, New Forward handles it end to end.
146° ultra-wide lens with EIS and up to 2K resolution; records at one press with 120 s pre-record and 600 s post-record, and the OSD watermarks time / user / device / GPS onto footage usable as acceptance and investigation evidence.
0.0001 lux ultra-low-light (B/W mode), 10 m infrared with auto/manual switching plus an LED light; automatic day/night switching keeps night works, tunnels and basements clearly visible.
183 g light, IP68 rated, passed four 2 m drop tests, operates −20°C to +55°C; the 3200 mAh battery records 11.5 hours at 1080p and is hot-swappable, with roughly a 5-minute power buffer so recording continues during battery changes.
Docking triggers automatic offload, charging and firmware updates — 8 cameras at once at up to 64 MB/s; 4× SATA bays (16 TB per disk) with RAID support, AES-256 encryption, account controls and HDMI/web search and playback by time, user and type. No cloud, no monthly fees.
With the optional DSS platform the control centre watches frontline video in real time with GPS tracking and trajectory playback, PTT group talk and one-press SOS with auto-location; dual nano-SIM design suits ground supervision of confined-space and high-risk works.
Weight, endurance, storage, retention, encryption, training and maintenance-response clauses are addressed item by item, with a compliance statement available; bilingual recording notices and access workflows follow the PDPO and Privacy Commissioner guidance.
